Electric Hinges and Hinges

Tychi’s Electric hinges proved a means of transferring power or signals from the door frame to electric locks, access controls or exit bars installed in the door. Hidden wires provided higher security and resistance from tampering, weather, exposed. The ball bearing hinges are excellent choice to match the color and size of the Electric hinges. Electric hinges are sold as each or for volume. Custom made electrical hinges also avilable, please call us.


















Electric Hinge 4" x 4"

Description:

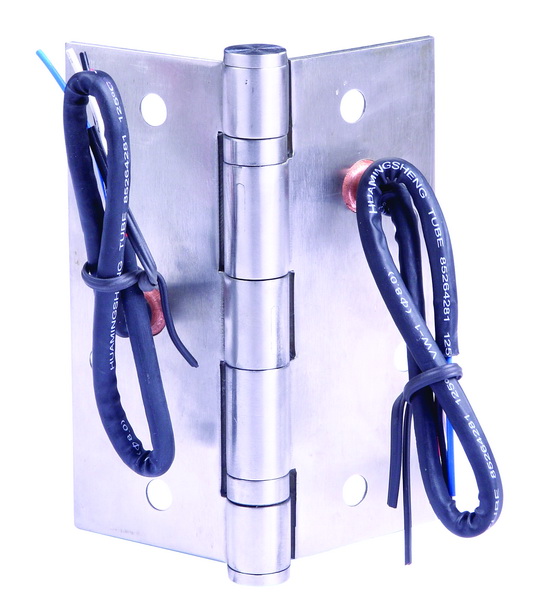

The Electric hinge is a through-wire hinge which provides hardwired power or signals from the door frame to the door.


Availability chart for Electric Hinge 4.0' x 4.0" x 3mm Stainless steel



28awg

24awg

20awg

2 wire







PN: HwHg-4040-28ga2

PN: HwHg-4040-24ga2

PN: HwHg-4040-20ga2

4 wire







PN: HwHg-4040-28ga4

PN: HwHg-4040-24ga4

PN: HwHg-4040-20ga4

6 wire



two 24 awg; four 28 awg



PN: HwHg-4040-28ga6

PN: HwHg-4040-2428ga6












Technical Specifications:
  • Demension:  4" x 4" x  3mm (size when open h x w)
  • Architectural grade
  • Finish: Satin nickel  Stainless Steel ( 630 finish)
  • Weight: 0.80 lbs
  • 28 or 24 or 20 gauge wire is used
  • 20 gauge -  4A @ 24V; 24 gauge - 2A@24V; 28 gauge -1A @ 24V
  • Hinge pins are not field removable
  • 2 to 6 wire Teflon coated
  • 12" wire lead on each side (longer lead available)
  • Download installation guide
  • Download Price List
  • View Product Video




2

















Electric Hinge 4 1/2" x 4 1/2"

Description:

The Electric hinge is a through-wire hinge which provides hardwired power or signals from the door frame to the door.







Availability chart for Electric Hinge 4.5' x 4.5" x 3mm Stainless steel



28awg

24awg

20awg

2 wire





PN: HwHg-4545-28ga2

PN: HwHg-4545-24ga2

PN: HwHg-4545-20ga2

4 wire







PN: HwHg-4545-28ga4

PN: HwHg-4545-24ga4

PN: HwHg-4545-20ga4

6 wire





PN: HwHg-4545-28ga6

PN: HwHg-4545-24ga6

PN: HwHg-4545-20ga6

8 wire



two 24 awg; six 28 awg



PN: HwHg-4545-28ga8

PN: HwHg-4545-2428ga8



10 wire







PN: HwHg-4545-28ga10







Technical Specifications:
  • Demension:  4.5" x 4.5" x  3mm (size when open h x w)
  • Architectural grade
  • Finish: Satin nickel  Stainless Steel ( 630 finish)
  • Weight: 1.1 lbs
  • 28 or 24 or 20 gauge wire is used
  • 20 gauge -  4A @ 24V; 24 gauge - 2A@24V; 28 gauge -1A @ 24V
  • Hinge pins are not field removable
  • 2 to 10 wire Teflon coated
  • 12" wire lead on each side (longer lead available)
  • Download installation guide
  • Download Price List
  • View Product Video




2




















Electric Hinge 4 1/2" x 4.0"

Description:

The Electric hinge is a through-wire hinge which provides hardwired power or signals from the door frame to the door.







Availability chart for Electric Hinge 4.5' x 4.0" x 3mm Stainless steel



28awg

24awg

20awg

2 wire





PN: HwHg-4540-28ga2

PN: HwHg-4540-24ga2

PN: HwHg-4540-20ga2

4 wire





PN: HwHg-4540-28ga4

PN: HwHg-4540-24ga4

PN: HwHg-4540-20ga4

6 wire





PN: HwHg-4540-28ga6

PN: HwHg-4540-24ga6

PN: HwHg-4540-20ga6

8 wire



two 24 awg; six 28 awg



PN: HwHg-4540-28ga8

PN: HwHg-4540-2428ga8



10 wire







PN: HwHg-4540-28ga10







Technical Specifications:
  • Demension:  4.5" x 4.0" x  3mm (size when open h x w)
  • Architectural grade
  • Finish: Satin nickel  Stainless Steel ( 630 finish)
  • Weight: 1.0 lbs
  • 28 or 24 or 20 gauge wire is used
  • 20 gauge -  4A @ 24V; 24 gauge - 2A@24V; 28 gauge -1A @ 24V
  • Hinge pins are not field removable
  • 2 to 10 wire Teflon coated
  • 12" wire lead on each side (longer lead available)
  • Download installation guide
  • Download Price List
  • View Product Video




2




















Electric Hinge 5.0" x 4.5"

Description:

The Electric hinge is a through-wire hinge which provides hardwired power or signals from the door frame to the door.







Availability chart for Electric Hinge 5.0' x 4.5" x 3mm Stainless steel



28awg

24awg

20awg

2 wire





PN: HwHg-5045-28ga2

PN: HwHg-5045-24ga2

PN: HwHg-5045-20ga2

4 wire





PN: HwHg-5045-28ga4

PN: HwHg-5045-24ga4

PN: HwHg-5045-20ga4

6 wire







PN: HwHg-5045-28ga6

PN: HwHg-5045-2428ga6

PN: HwHg-5045-2028ga6

8 wire



two 24 awg; six 28 awg



PN: HwHg-5045-28ga8

PN: HwHg-5045-2428ga8



10 wire







PN: HwHg-5045-28ga10







Technical Specifications:
  • Demension:  5.0" x 4.5" x  3mm (size when open h x w)
  • Architectural grade
  • Finish: Satin nickel  Stainless Steel ( 630 finish)
  • Weight: 1.35 lbs
  • 28 or 24 or 20 gauge wire is used
  • 20 gauge -  4A @ 24V; 24 gauge - 2A@24V; 28 gauge -1A @ 24V
  • Hinge pins are not field removable
  • 2 to 10 wire Teflon coated
  • 12" wire lead on each side (longer lead available)
  • Download installation guide
  • Download Price List
  • View Product Video

















Architectural Grade Hinge 4" x 4"

Description:

Architectural Grade Ball Bearing hinge to match the color and size of  the Electric hinge.

Technical Specifications:
  • Demension:  4" x 4" x  3mm (size when open h x w)
  • Finish: Satin Nikel
  • Non Removable Pin
  • Full Mortise Architectural Hinges
  • Ball Bearing
  • Stainless Steel with Steel Pin
  • 8 Screw Holes
  • Download Price List

   Architectural Grade Hinge 4 1/2" x 4 1/2"

Description:

Architectural Grade Ball Bearing hinge to match the color and size of  the Electric hinge.

Technical Specifications:
  • Demension:  4.5" x 4.5" x  3mm (size when open h x w)
  • Finish: Satin Nikel
  • Non Removable Pin
  • Full Mortise Architectural Hinges
  • Ball Bearing
  • Stainless Steel with Steel Pin
  • 8 Screw Holes
  • Download Price List
